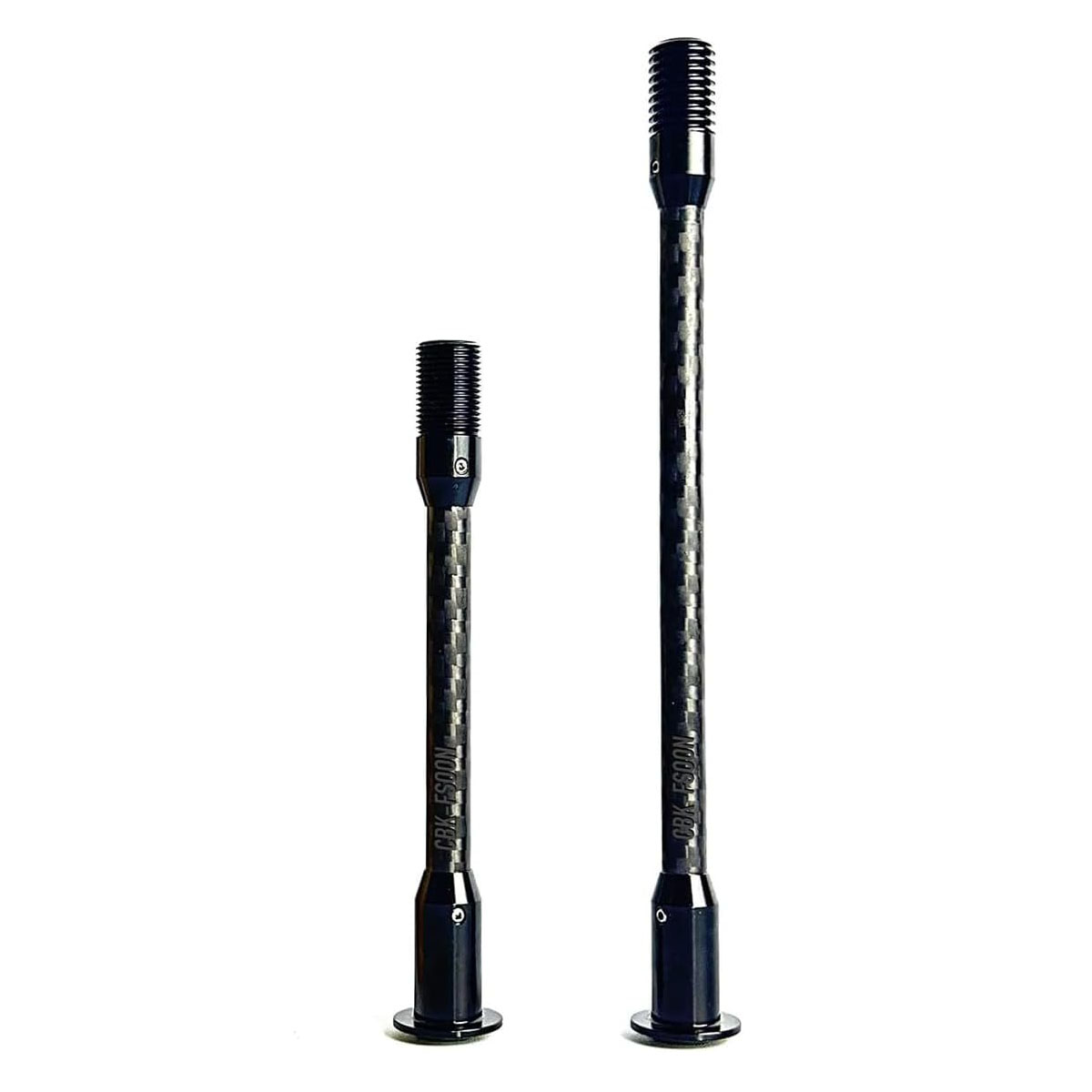

carbon bicycle thru axle pair lightweight

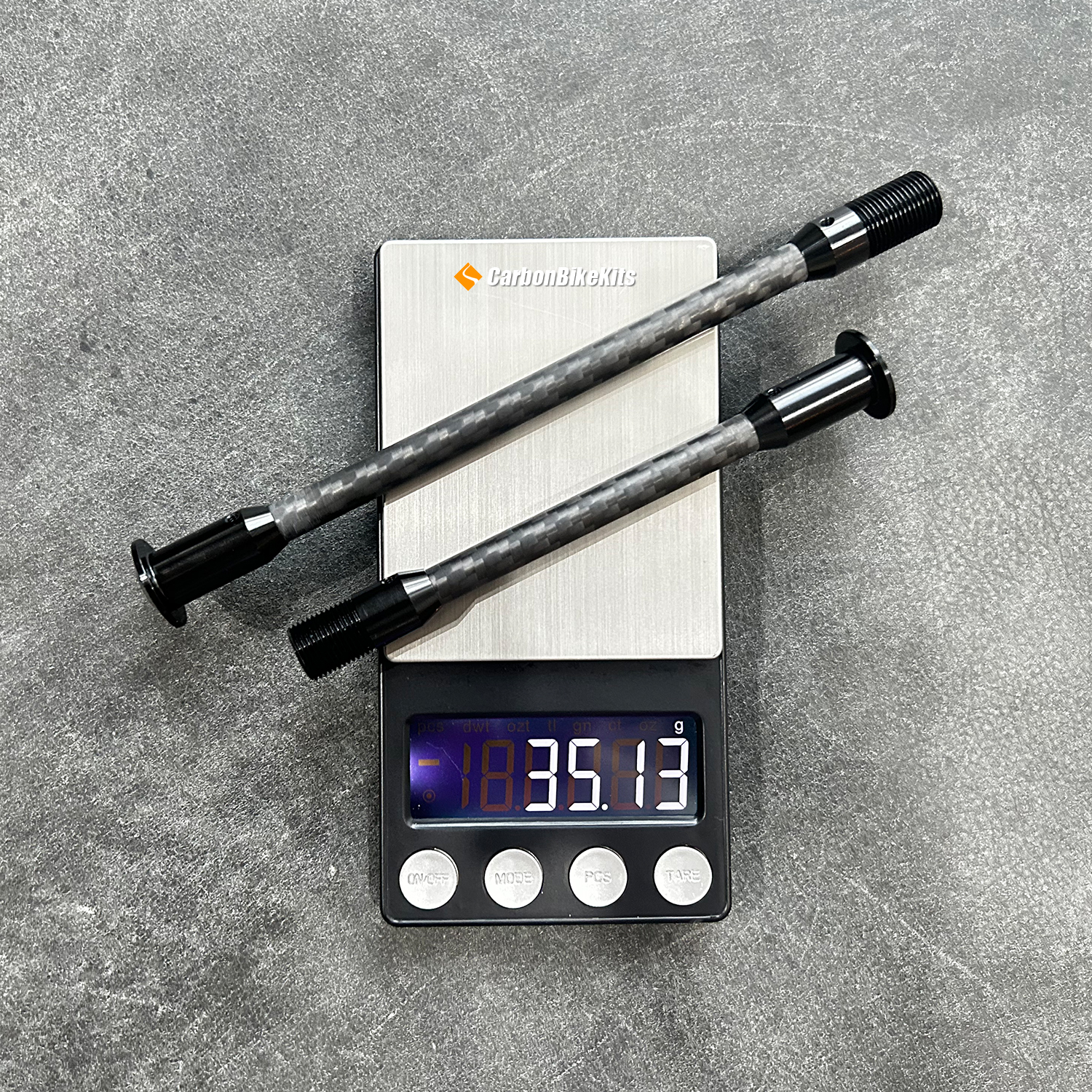

the weight of carbon thru axle

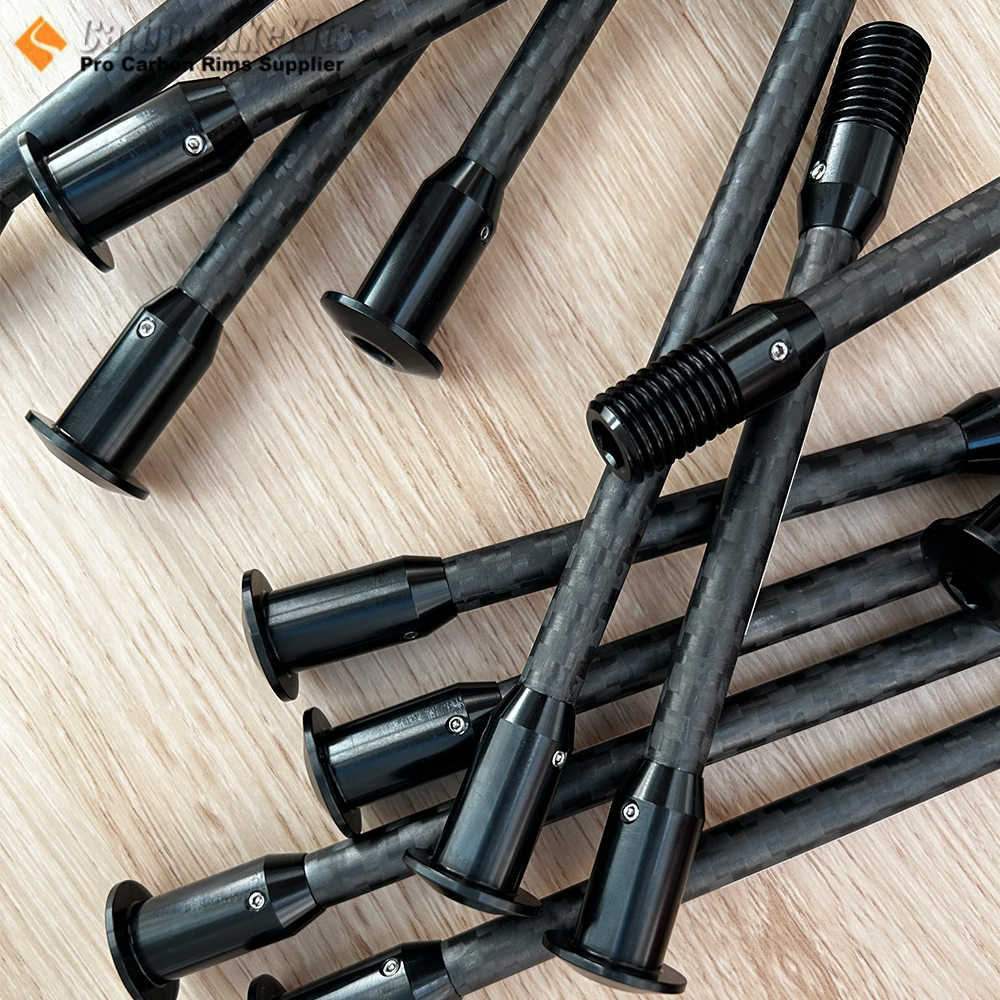

CBK FSOON Bicyce lightweight carbon thru axle

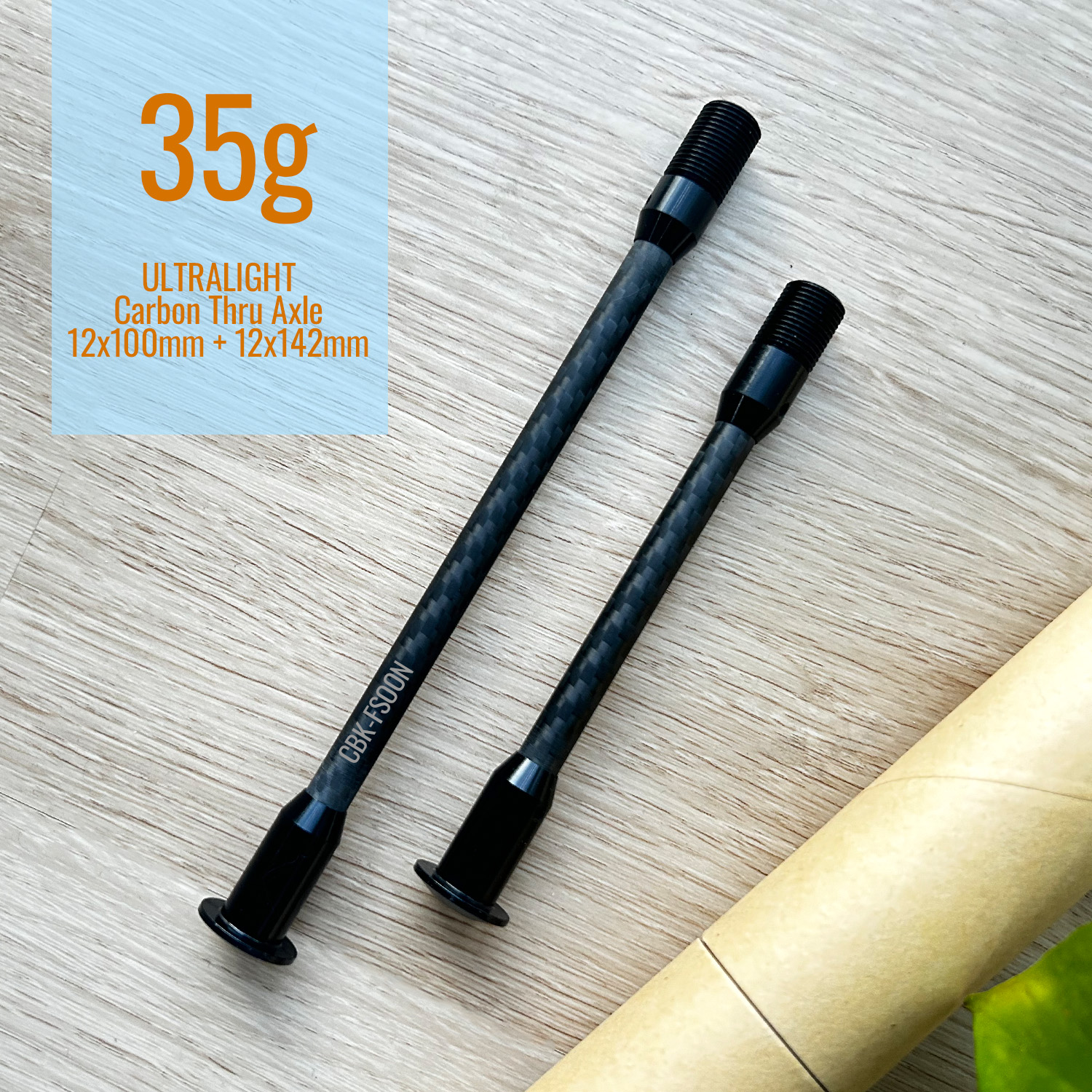

carbon thru axle

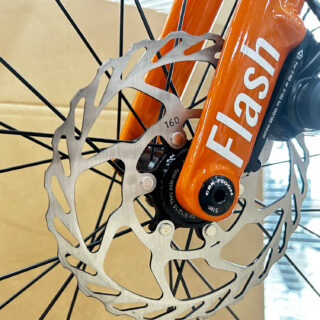

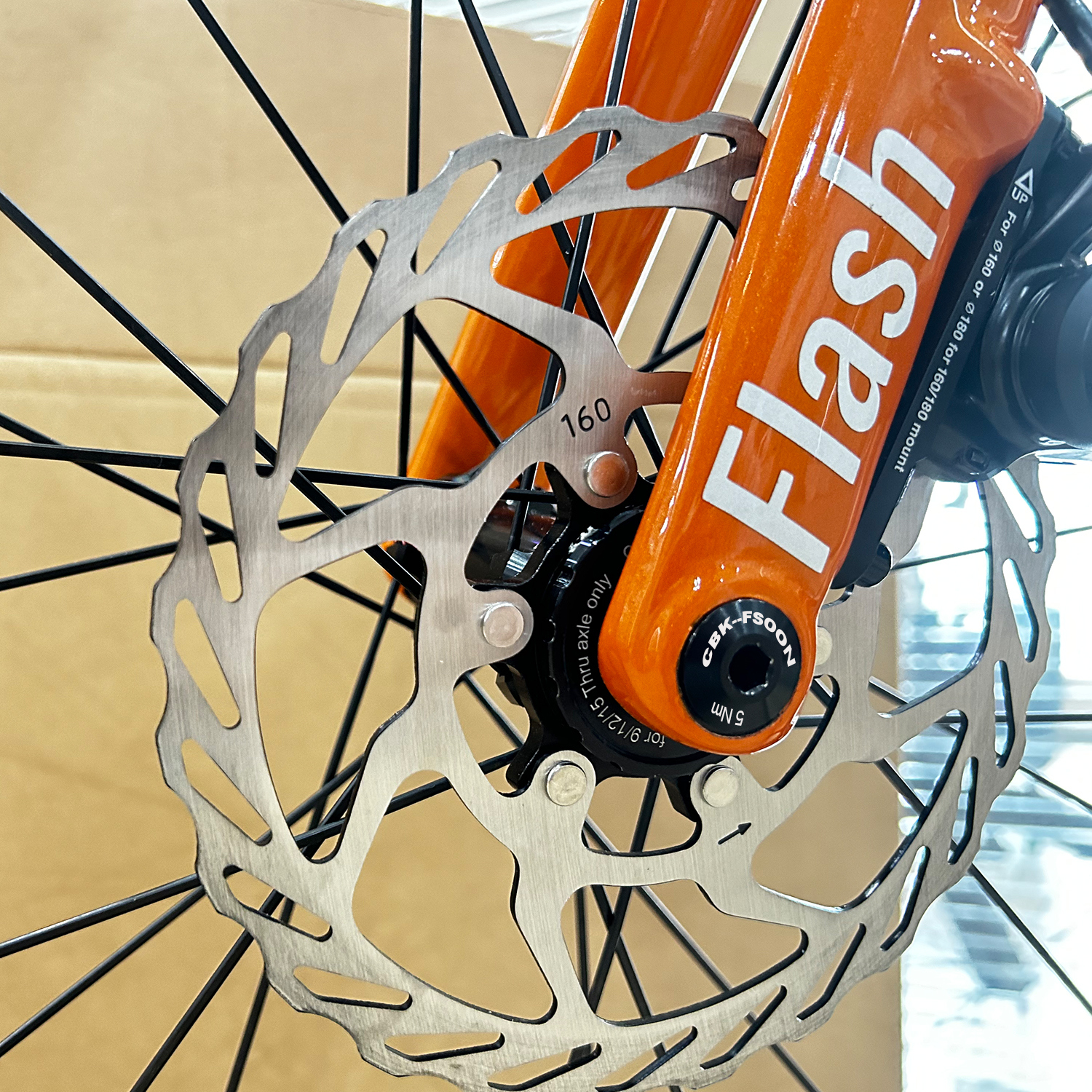

After install the carbon thru axle

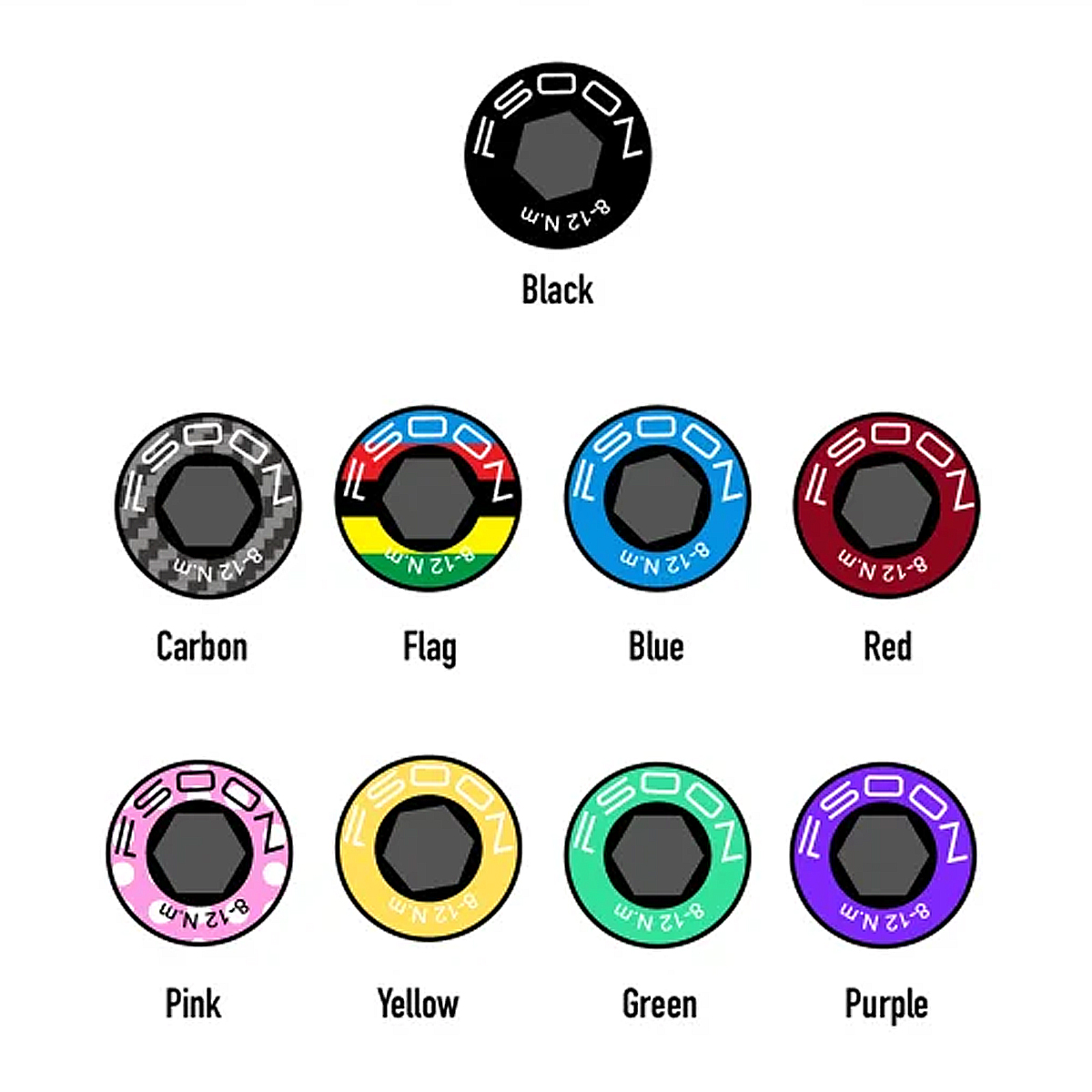

bike thru axle color end
carbon bicycle thru axle pair lightweight
the weight of carbon thru axle
CBK FSOON Bicyce lightweight carbon thru axle
carbon thru axle
After install the carbon thru axle
bike thru axle color end
Thru Axle Hub Adapter 12mm to 9mm 100mm overview with O rings Thru Axle Hub Adapter 12mm to 9mm 100mm with O-Rings for MTB Road Bikes

Carbon Bicycle Thru Axle 12x100mm 12x142mm 12x148mm Ultra Light for Road Mountain Bikes

0 reviews

$138.00

SKU: J-QK09 Brand:
  • Ultra-Lightweight Carbon Construction: Carbon fiber shaft paired with alloy ends, about 30–35g per pair
  • Durable Hybrid Alloy Ends: CNC-machined aluminum alloy ends provide wear-resistant threading and firm clamping engagement
  • Dual Hex Wrench Access: Built-in #6 Allen key sockets on both ends simplify installation and removal from either side.
  • Precision Fit Standards: Compatible with 12x100mm front, 12x142mm rear, and 12x148mm Boost spacing frame standards, also custom other size
  • Optimized Torque Tolerances: Designed to be securely tightened to 8–10 N·m using a standard torque wrench

Thru Axle Length

Your Bike Brand & Model

Your message

Color

Order total:
x
Ask B2B Quote
Add to wishlist

Description

Carbon fiber thru axle

Product Overview

Upgrade your road, gravel, or mountain bike setups with the carbon bicycle thru axle, designed for riders seeking essential weight savings without sacrificing clamping rigidity.
Engineered with a lightweight carbon fiber central shaft bonded to precision CNC-machined aluminum alloy ends, this ultralight thru axle pair weighs approximately 30 to 35 grams, reducing rotational and static bike weight.
Dual #6 hex sockets allow easy tool access from either side of the fork or frame dropouts, ensuring smooth installation and quick wheel swaps during maintenance or race days.

Specifications

  • Material: Carbon Fiber with Aluminum Alloy
  • Weight: about 35g/pair

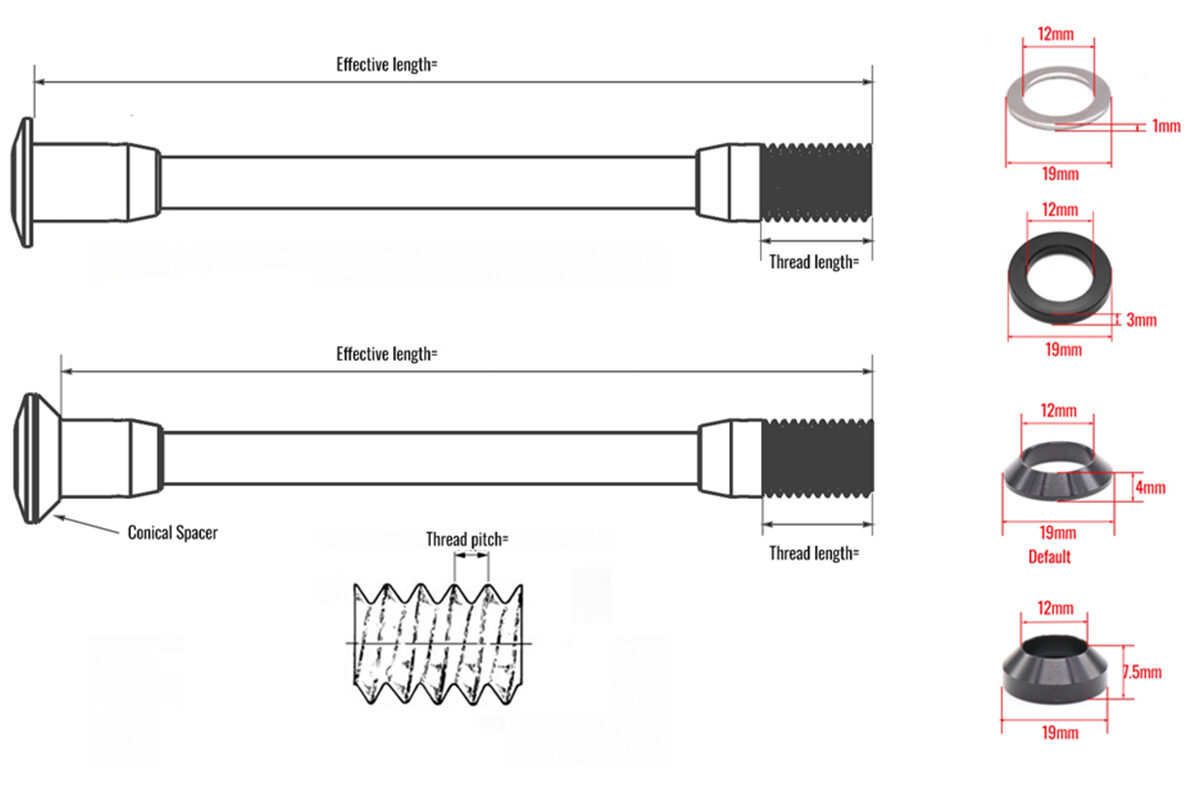

Measuring length and thread pitch on carbon thru axle

How to buy

  1. Choose the size you need.
  2. Leave a message about your bike brand and model number.
  3. After placing the order.Our sales will contact you to check the size.

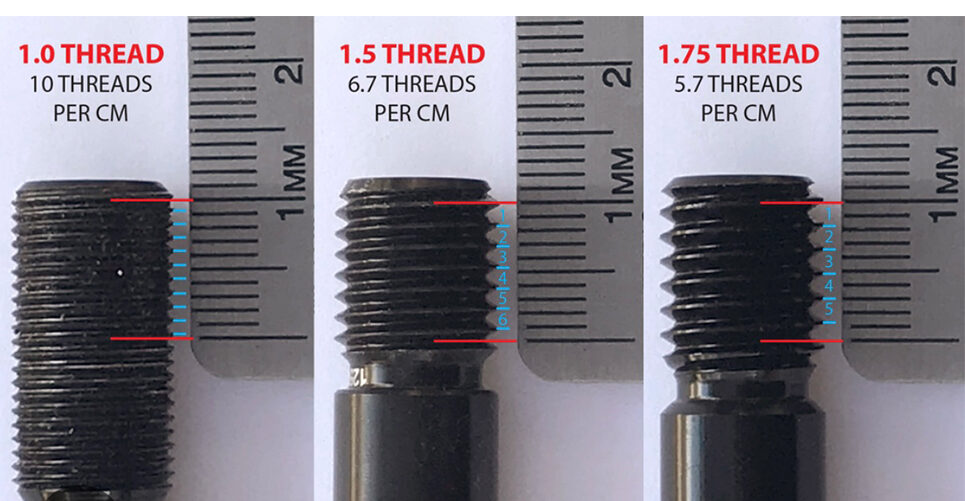

carbon fiber bicycle thru axle size measure

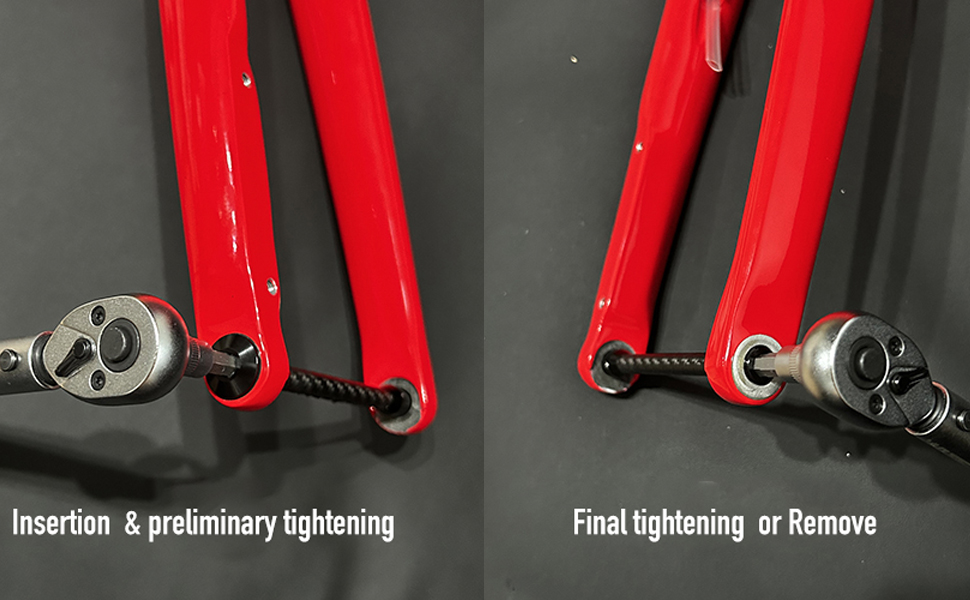

Installation

  • Keep clear & use grease.
  • Do not apply locking compound on the threads.
  • Insertion of Thru Axle & preliminary tightening from the non-thread side.
  • Tighten the torque to 8-10 N·m using a torque wrench.
  • It is recommended to install and remove the shaft using the threaded end to extend its service life.

thru axle installtion

FAQ

Q: What torque spec should I follow when installing this carbon thru axle?

  • A: We recommend using a calibrated torque wrench to tighten the axle to 8–10 N·m. Always ensure threads are clean and lubricated with grease, and do not use thread-locking compounds.

Q: How do I select the correct thru axle length and thread pitch for my frame or fork?

  • A: Thru axle dimensions vary between frame manufacturers. Before ordering, please measure your original axle’s total length, shaft diameter (12mm), thread length, and thread pitch (e.g., P1.0, P1.5, or P1.75) to ensure exact fitment.

Package Include

  • 1 pair carbon bicycle thru axle

Additional information

Weight 0.3 kg
Dimensions 18 × 5 × 5 cm
